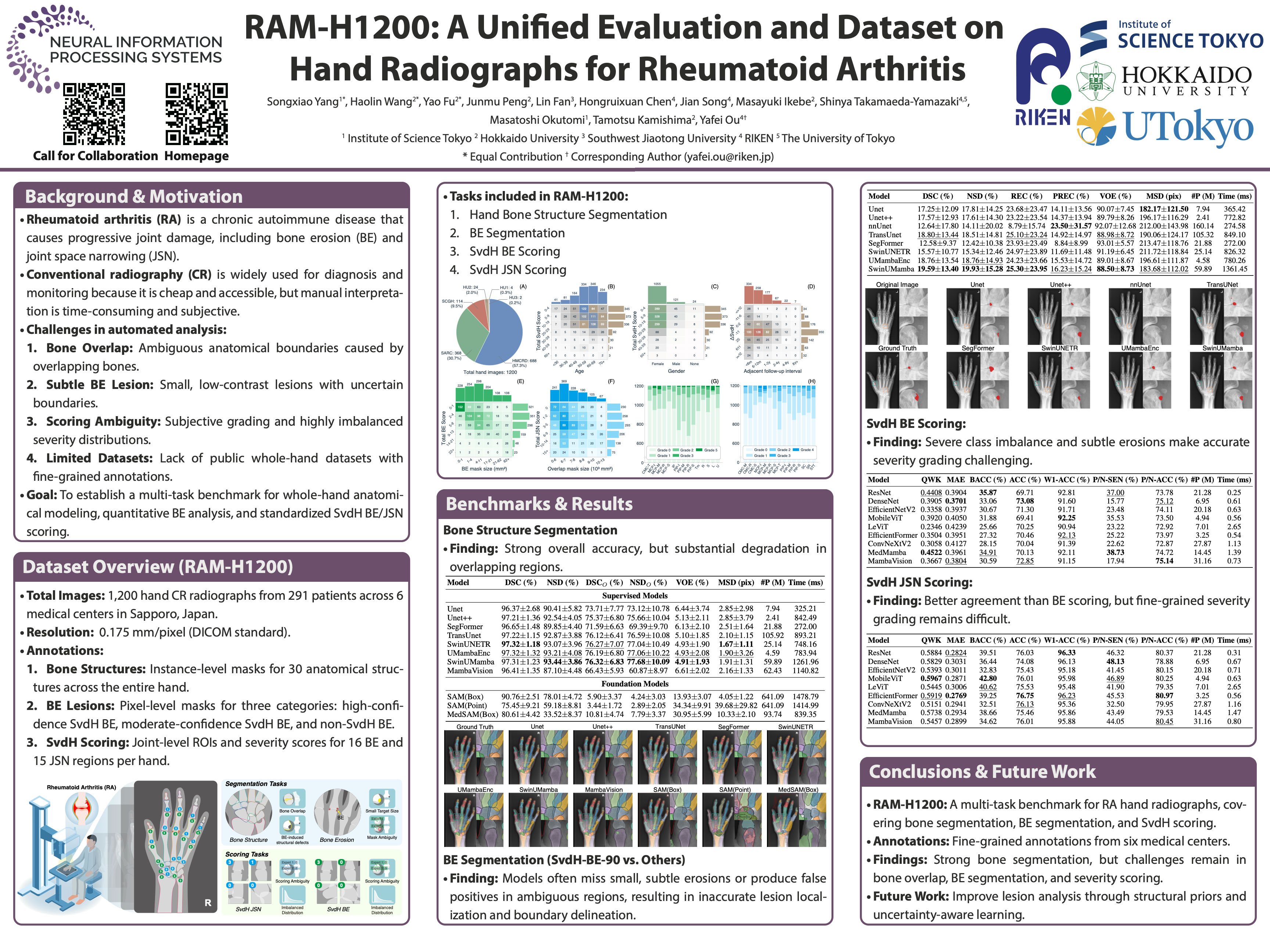

RAM-H1200: A Unified Evaluation and Dataset on Hand Radiographs for Rheumatoid Arthritis

Rheumatoid arthritis (RA) assessment from hand radiographs requires multi-level analysis and modeling of anatomical structures and fine-grained local pathological changes. However, existing public resources do not support such multi-level analysis, often lacking full-hand coverage, fine-grained annotations, and consistent integration with clinical scoring systems. In particular, annotations that enable quantitative analysis of bone erosion (BE) remain scarce. RAM-H1200 contains 1,200 hand radiographs from a regional, multi-institutional Japanese cohort collected across six medical centers in the Sapporo region, with multi-level annotations including (i) whole-hand bone structure instance segmentation, (ii) pixel-level BE masks, (iii) Sharp/van der Heijde (SvdH)-defined joint regions of interest, and (iv) joint-level SvdH scores for both BE and joint space narrowing (JSN). It provides a common evaluation resource covering anatomical structure modeling, localized erosive pathology analysis, and clinically standardized RA severity assessment from the same radiographs. The proposed BE masks enable, for the first time, quantitative BE analysis beyond coarse categorical grading by providing explicit spatial supervision for lesion extent and morphology. To our knowledge, RAM-H1200 is the first public benchmark resource providing whole-hand bone structure instance segmentation, pixel-level BE delineation, and clinically grounded joint-level SvdH scoring for both BE and JSN. Results across benchmark tasks show that anatomical modeling is substantially more mature than quantitative BE analysis: whole-hand bone segmentation achieves strong performance, whereas BE segmentation remains a major open challenge. By providing multi-level annotations spanning anatomical structure modeling, quantitative lesion analysis, and clinically grounded SvdH scoring, RAM-H1200 provides a comprehensive benchmark resource for RA analysis on hand radiographs. Benchmark & Code: https://github.com/YSongxiao/RAM-H1200 Dataset Repository: https://huggingface.co/datasets/TokyoTechMagicYang/RAM-H1200-v1
